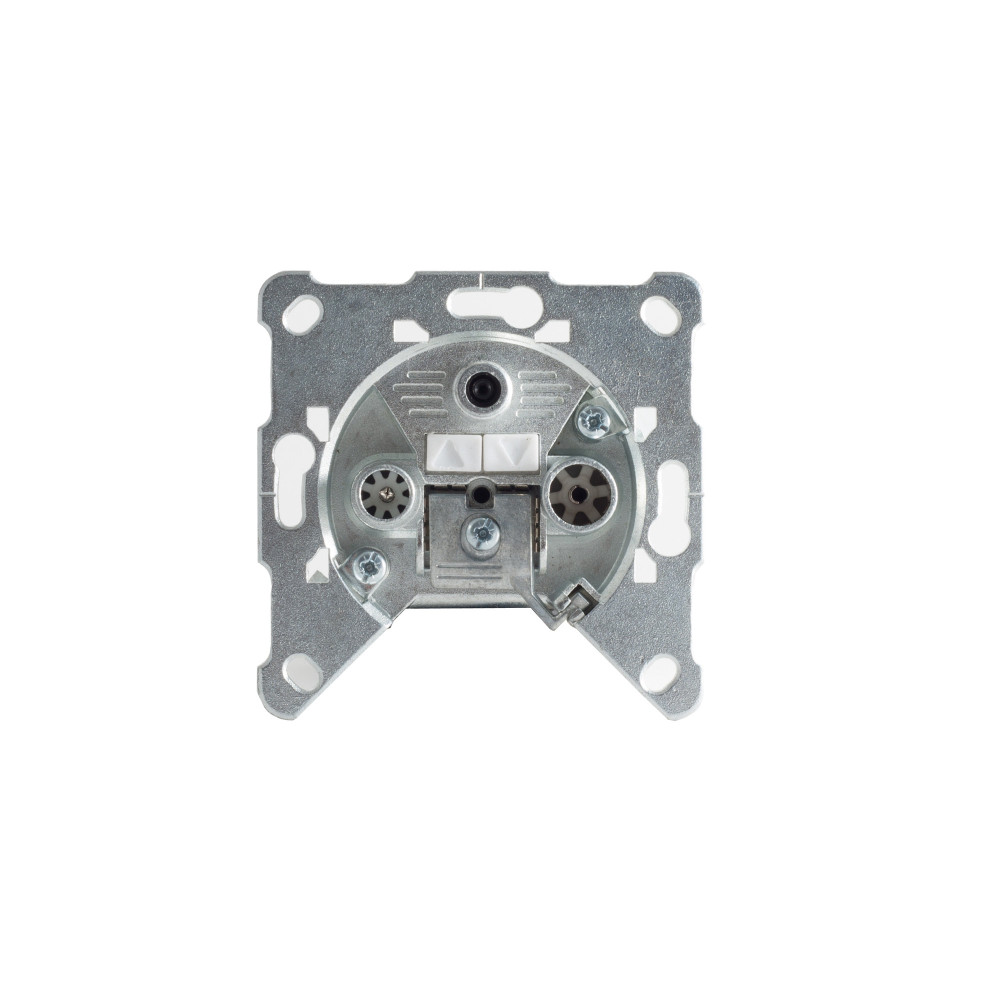

Antenna socket, clamp function, TV/Radio/SAT, 10dB

Suitable for flush mounting. Easy plug in from coaxial cable without need screws (clamp function). · Type: loop-through socket · Feature: clamp function · Suitable for digital- and back channel: yes · DC-pass: yes · Housing: zinc die-casting · Color: grey / silver Trunk line · Frequency range: 5 to 1000MHz · Insertion loss (IN): 2.3 - 3dB · Frequency range: 1000 to 2150 to 1000MHz · Insertion loss (IN): =3, = 4.5, = 6.5dB · Isolation internal: 20dB · Suitable for inner conductor: 0.6 to 0.8mm · Suitable for outer diameter: 4 to 6mm IEC plug (TV) · Frequency range: 5 to 862MHz · Insertion loss (IN): 14dB · Frequency range: 1000 to 2150 to 2400MHz · Insertion loss (IN): = 18dB IEC jack (Radio) · Frequency range: 5 to 110MHz · Insertion loss (IN): 14dB · Frequency range: 150 to 2400MHz · Insertion loss (IN): = 18dB F-type jack (SAT) · Frequency range: 950 to 2150MHz · Insertion loss (IN): 10 +- 2dB · Frequency range: 2150 to 2400MHz · Insertion loss (IN): 10 +- 3.5dB
