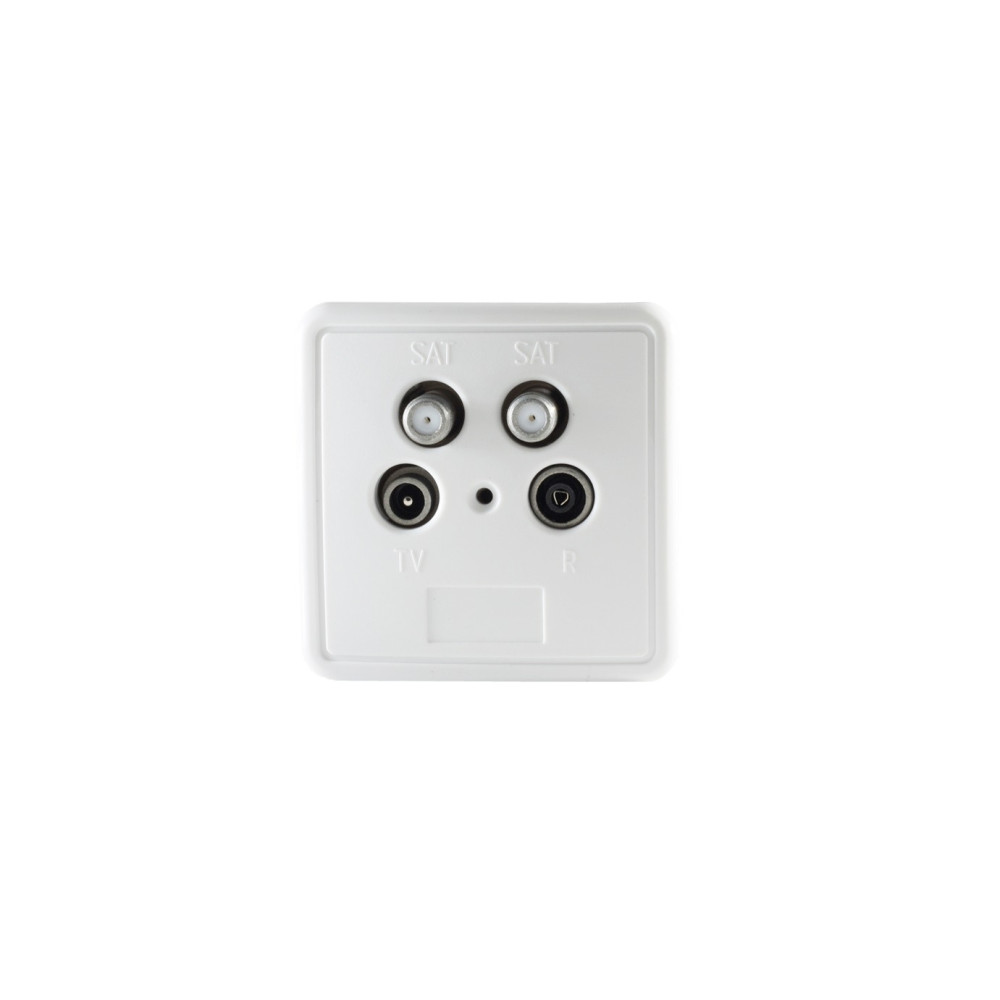

ant. So.,BK+2SAT, sti. b.ch., 1 dB, 4way SET white

Suitable for surface mounting or flush mounting. · Type: terminal socket · Feature: including frame and cover in white RAL 9003 · Suitable for digital- and back channel: yes · DC-pass: yes · Digital ready: yes · Connection loss: 1dB · Housing: zinc die-casting · Color: grey / silver Trunk line · Return loss: 5dB · Frequency range: 5 to 2400MHz IEC connector (TV) · Return loss: 5dB · Frequency range: 5 to 30MHz · Insertion Loss (IN): 2.5dB · Frequency range: 47 to 68MHz · Insertion Loss (IN): 2.5dB · Frequency range: 125 to 862MHz · Insertion Loss (IN): 2.5dB IEC socket (radio) · Return loss: 5dB · Frequency range: 0.15 to 26MHz · Insertion loss (IN): - · Frequency range: 88 to 108MHz · Insertion loss (IN): 2dB · Frequency range: 111 to 120MHz · Insertion loss (IN): - · Frequency range: 120 to 139MHz · Insertion loss (IN): - F-type jack (SAT 1) · Return loss: 5dB · Frequency range: 950 to 1750MHz · Insertion loss (IN): 3dB · Frequency range: 1750 to 2150MHz · Insertion loss (IN): 3dB · Frequency range: 2150 to 2400MHz · Insertion loss (IN): 3dB F-type jack (SAT 2) · Return loss: 5dB · Frequency range: 5 to 950MHz · Insertion loss (IN): 2dB · Frequency range: 950 to 2150MHz · Insertion loss (IN): 3dB · Frequency range: 2150 to 2400MHz · Insertion loss (IN): 3dB incl. screws
