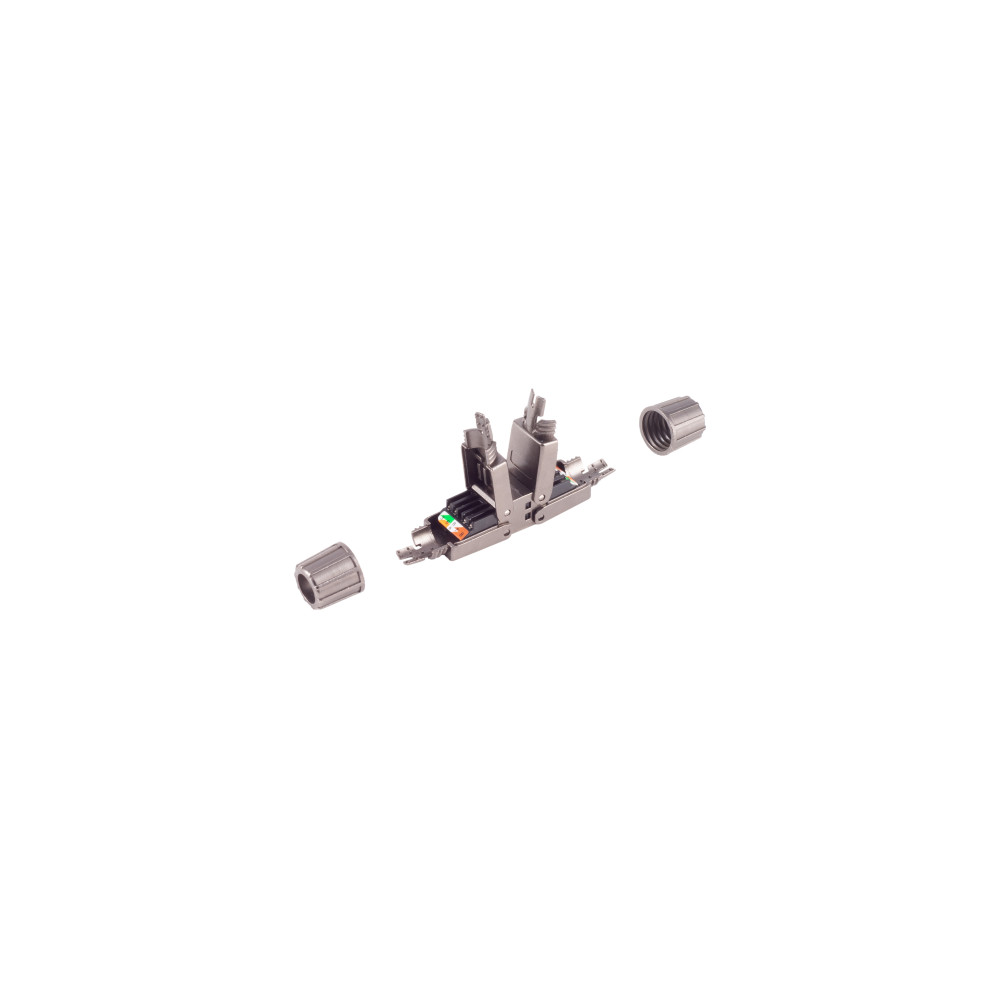

IDC coupler, toolless, quick, STP, Cat. 6A
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
With this IDC coupler you can combine 2 network cables without using tools. · Connections: Insulation-displacement connector (IDC) to Insulation-displacement connector (IDC) · Assigned pins: 8 (1:1) · Fit for solid wires 1/22 AWG to 1/24 AWG · Fit for stranded wires 7/22 AWG to 7/24 AWG · For cable diameters up to: 8.5mm · Specification: Cat. 6A (Class EA) · Conform to: Cat.6A Permanent Link ANSI/TIA/EIA 568C.2, ISO/IEC 11801 Class Ea · Shielding: STP · Compatible with: 100Base-TX, 1000Base-T, 10GBASE-T · Housing material: metal · Features: quick IDC cable manager, T568A/B color code · Temperature range: -10° C to 60° C · Color: black Package Contents: · Coupler · 2x Cable manager · 2x Metal boot straight, screwable · 2x Copper foil · Instruction manual
08-10001
