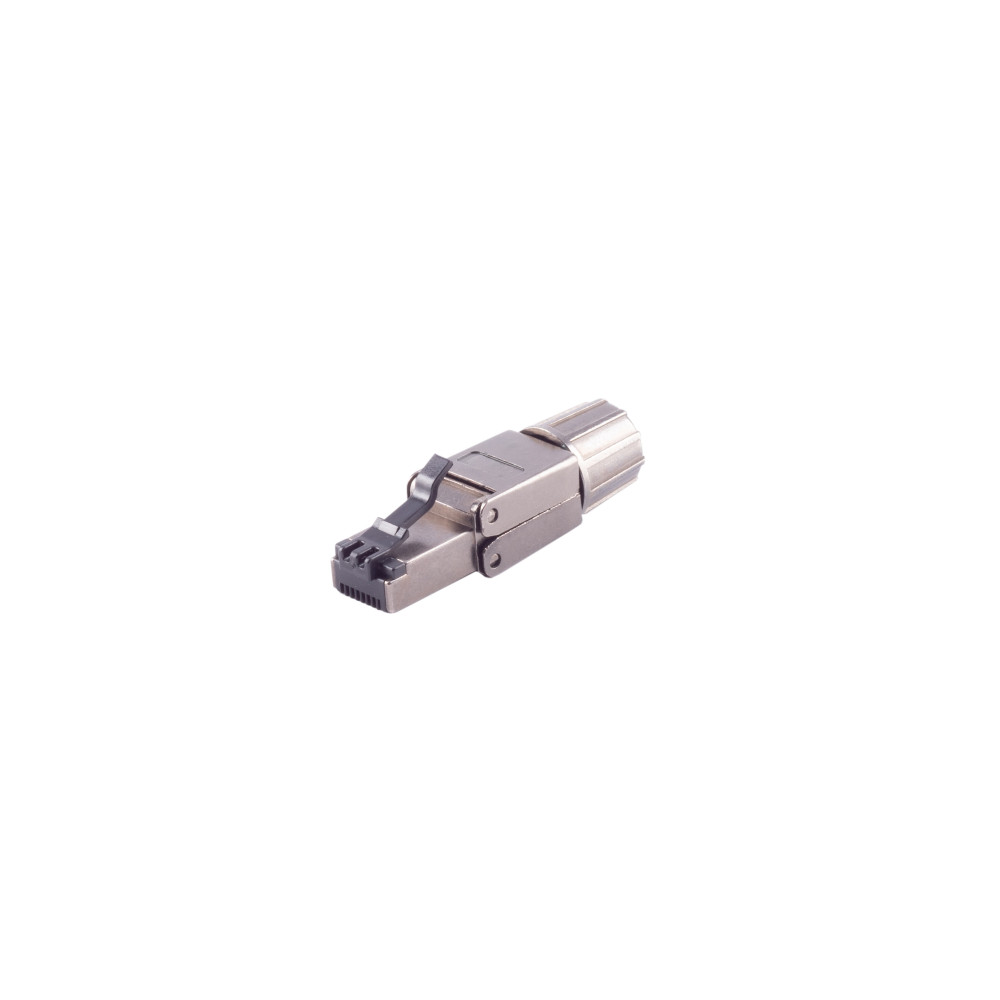

RJ-45 plug, toolless, quick, STP, Cat. 8.1

The field assembly plug is used for connection of network cables, you can use different cable types use. · Connections: Insulation-displacement connector (IDC) to RJ-45 plug · Fit for solid wires 1/22 AWG to 1/24 AWG · Fit for stranded wires 7/22 AWG to 7/24 AWG · For cable diameters up to: 9.2mm · Specification: Cat. 8.1 (Class I) · According to FLUKE DSX-8000 CAT 8 CHANNEL TEST 2000 MHz · Shielding class: STP · Compatible with: 10GBASE-T, 25GBASE-T, 40GBASE-T · Housing material: metal · Tool-less installation · Features: quick IDC cable manager, T568A/B color code · Color: black Package Contents: · RJ-45 plug · Cable manager · Metal boot straight, screwable · Copper foil · Instruction manual
08-45006
