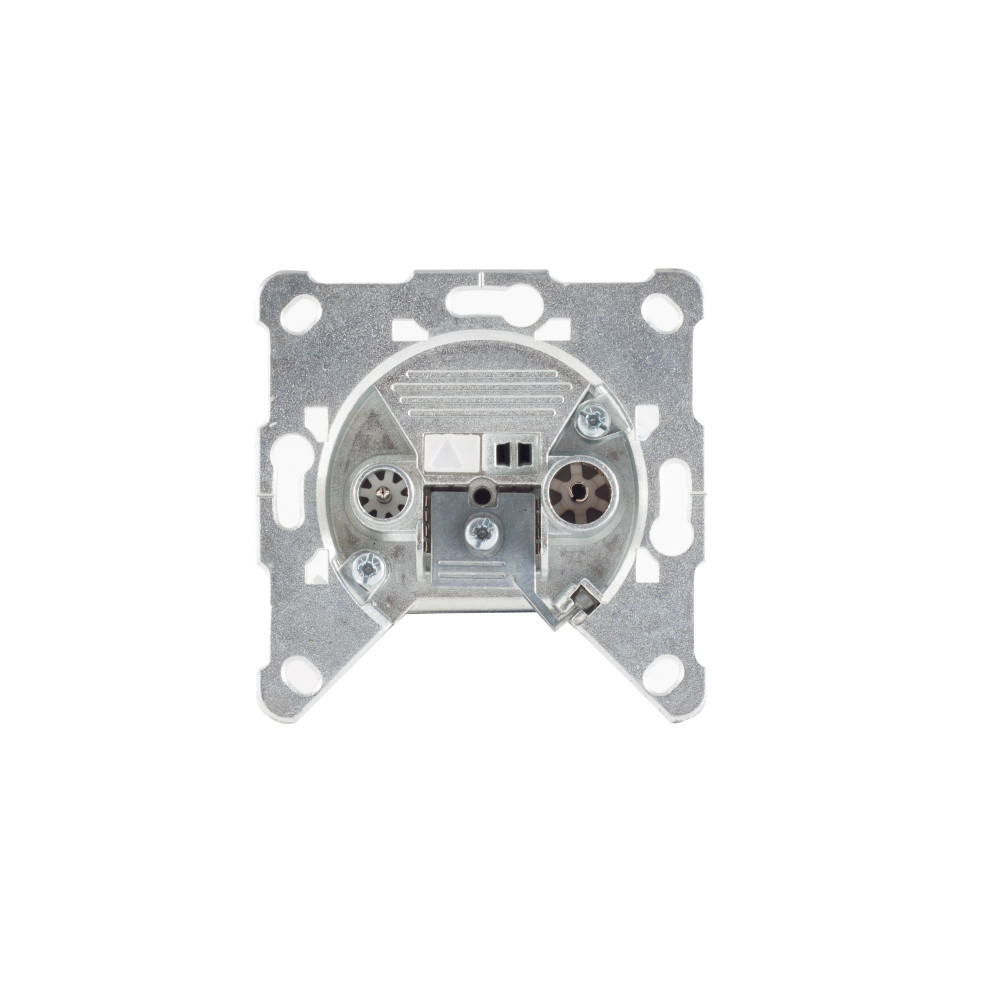

Antenna socket, clamp function, TV/Radio, 1dB

Antenna socket, clamp function, TV/Radio, 1dB Suitable for flush mounting. Easy plug in from coaxial cable without need screws (clamp function). · Type: terminal socket · Feature: clamp function · Suitable for digital- and back channel: yes · DC-pass: no · Housing: zinc die-casting · Color: grey / silver Trunk line · Frequency range: 5 to 1000MHz · Insertion loss (IN / OUT): - · Isolation internal: - · Suitable for inner conductor: 0.6 to 0.8mm · Suitable for outer diameter: 4 to 6mm IEC plug (TV) · Frequency range: 5 to 65MHz · Insertion loss (IN): 1 +- 1dB · Frequency range: 88 to 108MHz · Insertion loss (IN): = 15dB · Frequency range: 125 to 1000MHz · Insertion loss (IN): 1 +- 1dB IEC jack (Radio) · Frequency range: 88 to 108MHz · Insertion loss (IN): 1 +- 1.5dB
