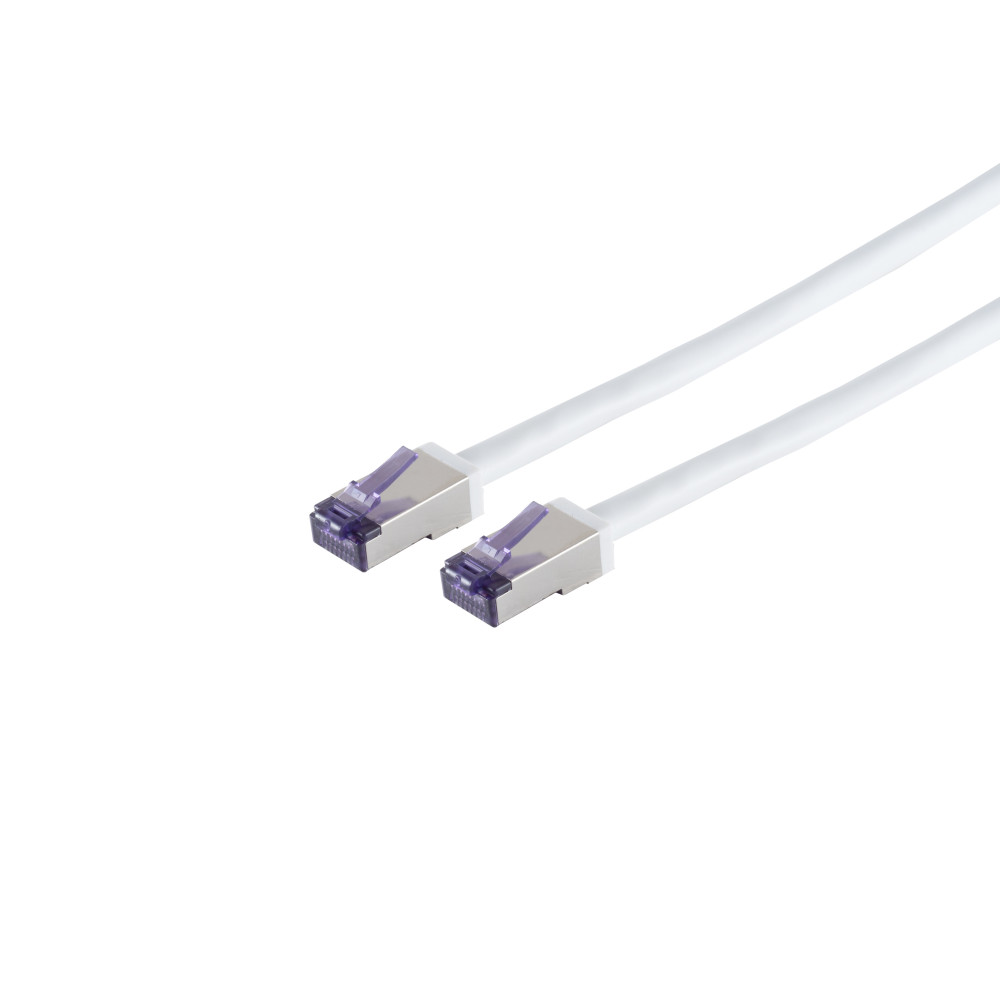

Patchcable Cat. 6A SuperFlex S/FTP, white, 0,25m

Use the SuperFlex where you have space problems. The particularly short design of the plug brings benefits for rack installations, CCTV / IP cameras and cable ducts. Due the flexible outer sheath, the cables can reach a bending radius of 10mm. With S/FTP shielding class, you are well protected against any interference signals such as crosstalk. · Connections: RJ-45 plug to RJ-45 plug · Compatible with 10GBASE-T, 1000BASE-T and below · Transmission frequency up to: 500 MHz · Bandwidth up to: 10 Gbps · Pin assignment: EIA/TIA 568B · Spezifikation: Cat. 6A · Backwards compatible versions: Cat. 6, Cat. 5E and below · Number of shieldings: 2 · Shielding 1: ALU foil laminated PIMF (100% density) · Shielding 2: ALU braid · Shielding class: S/FTP · Cable structure: AWG 26/7 · Wire material: copper · Wire type: stranded · Wire number: 8 (4 x 2 twisted pair) · Plug: moulded · Contact surface: pins gold plated 3µ · Plug material: plastic, copper shell nickel plating · Kink protection: no · Latch protection: no · Cable type: round cable · Material cable sheath: soft-PVC, flexible · Diameter cable (ca.): 6,2mm · Color cable: white · Color plug inlay: purple · Length: 0,25m
