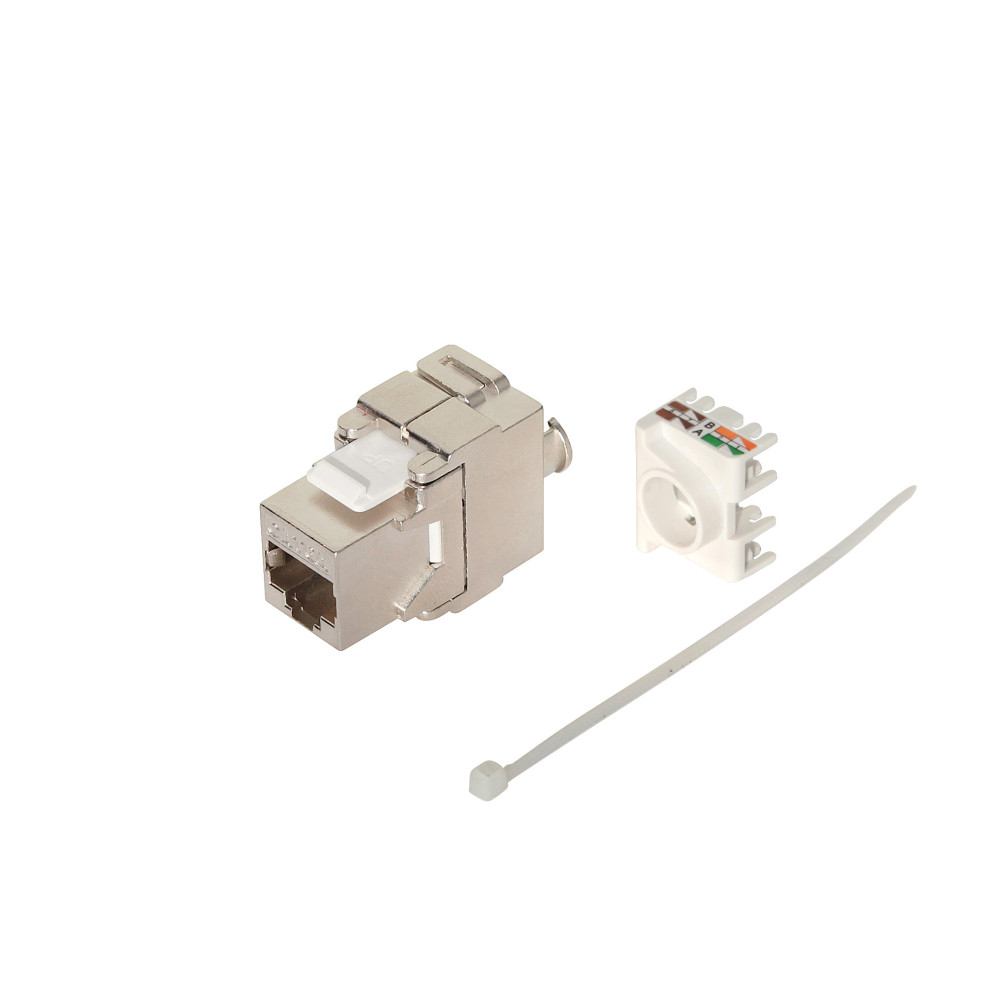

RJ-45 Keystone Cat. 6A certified, 500 MHz

A Keystone module can be connected to a network cable, you can use different cable types. The dimensions of Keystone modules all follow a standard so they can be mounted easily on suitable holders. · Connections: Insulation-displacement connector (IDC) to RJ45 plug · Fit for solid wires: AWG 26 to AWG 22 · Fit for stranded wires: AWG 26 to AWG 22 · For wire OD (with insulation): from 0.45 - 0.65mm · For cable diameters from 5.0 - 8.5mm · Specification: Cat. 6A (Class EA) · Transmission frequency up to: 500MHz · Bandwidth up to: 10Gbps · Shielding class: STP · Qualified for: T568A, T568B, PoE IEEE 802.3af, PoE+ IEEE 802.3at · Standards: TIA/EIA 568B.2-10, TIA/EIA 568-C.2:2009-08, ISO/IEC 11801-AMD1:2008-04, IEC 60603-7-51:2010, 2nd FPDAM 2 to ISO/IEC 11801-AMD2:2009-04 · Housing material: zinc alloy · PCB and PC plastic material: UL94V-0 · Tool-less installation · Size (L/W/H): 41.4/16.9/26.4mm · Color: silver, white Package Contents: · RJ45 plug · Cable manager · Cable tie · Instruction manual
