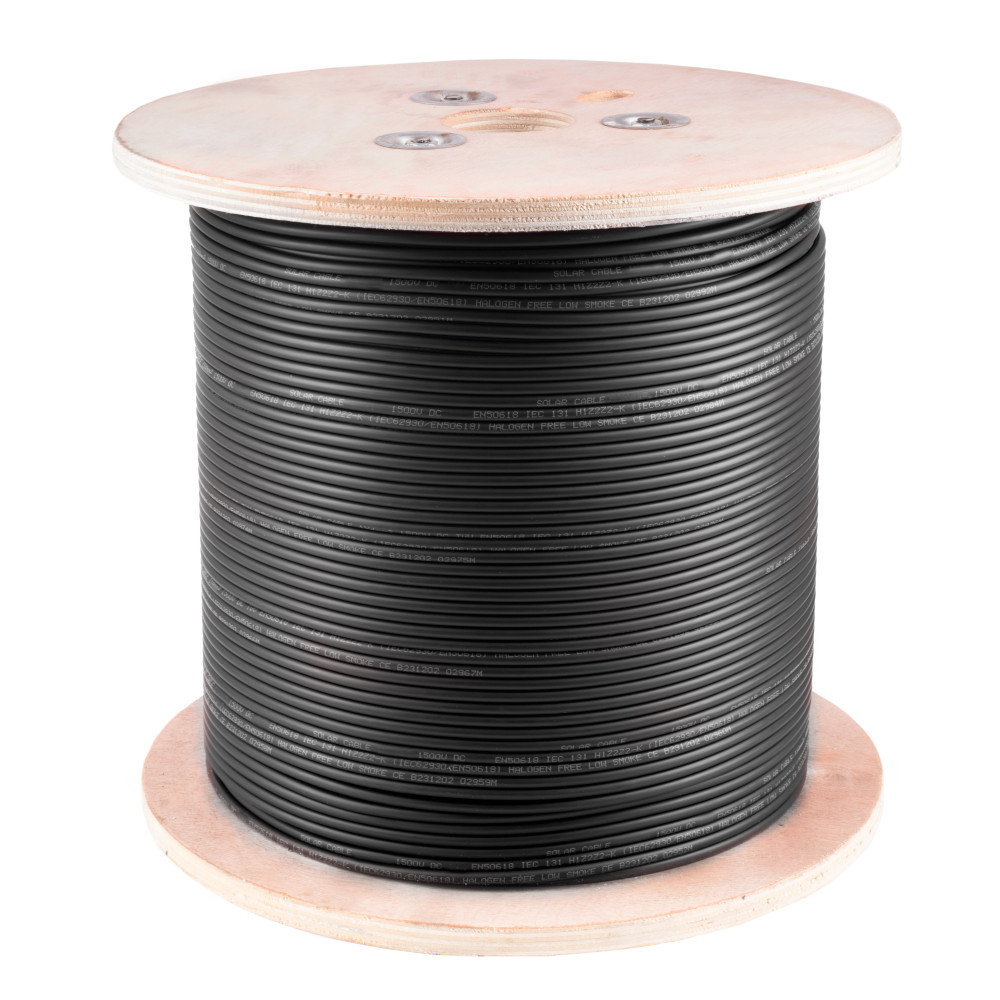

Solar cable 4mm², H1Z2Z2-K, bulk, black, 500m

Solar cable for fixed installation in photovoltaic plants or for assembly with PV connectors. Thanks to H1Z2Z2-K certification, you don't need to worry about safety or quality. · Number of conductors: 1 · Conductor cross-section: 4.0mm² · Diameter conductor (approx.): 2.6mm · Conductor material: tinned copper · Wire type: stranded · Cable type: round cable · Number of insulators: 2 · Material insulator: XLPO e-beam cross-linked (halogen-free) · Color: black · Material insulator outer sheath: XLPO e-beam cross-linked (halogen-free) · Color: black · Cable diameter (approx.): 5.6 mm · Certification: H1Z2Z2-K · Standards: EN 50618 & IEC 62930, VDE 0295 / IEC 60228 class 5, EN 60332-1-2 (flame retardant), IEC 60754-1 (halogen-free), EN 60811-403, EN 50396 8.1.3 (ozone resistant method A & B) EN 50289-4-17 (weathering/UV resistance) · Classification according to EU 305/2011 EU Construction Products Regulation: Eca · Minimum bending radius (static): 4 x OD · Minimum bending radius (dynamic): 5 x OD · Rated voltage: AC U0/U = 1 kV, DC 1.5 kV (max. permitted U0 1.8 kV DC) · Voltage withstands: 6.5 kV AC · Ambient temperature: -40 °C to +90 °C, max temperature at conductor +120 °C · Storage temperature: maximum +45 °C · Conductor resistance at +20 °C: = 5.09 Ohm/km · Insulation resistance at +20 °C: = 1000 MOhm/km · Current carrying capacity at +60 °C: 55 amperes · Winding: spool · Length: 500.0m
