- Out-of-Stock

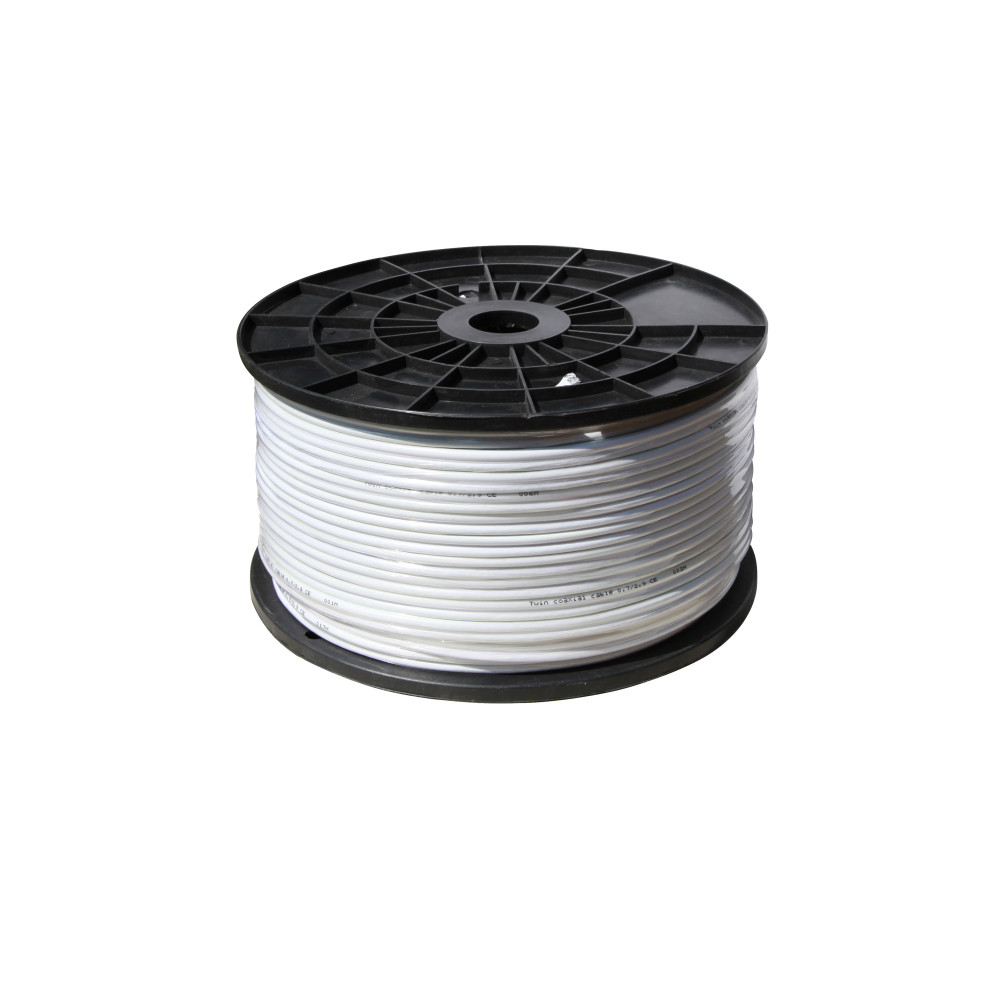

Coaxial cable 4x/0.9/4.6, CCS, 2-fold, 90dB, 100m
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Coaxial cable for HDTV via cable connection or satellite reception. Quad coaxial cable / Quattro coaxial cable, contain four coaxial cables in one. 4 coaxial cables each: · Inner conductor: 0.9 mm · Wire material: copper clad steel · Wire type: solid · Insulation: 4.6 mm · Insulation material: PE · Shielding: double · Shielding 1: foil bonded to the dielectric · Shield 2: braiding · Shielding dimension: = 90 dB · characteristic impedance 75 Ohm +/- 2 Ohm · Bending radius single (min.): 68.0 mm · Bending radius sum/quad (min.): 200.0 mm · Cable jacket: PVC · Cable type: round · Cable diameter single: 6.8 mm · Cable diameter sum/quad: 20.0 mm · CPR Euroclass: Eca · Color: white · Color single coaxial cables: red, yellow, blue, green · Winding: spool · Length: 100.0 m
15-37001006
