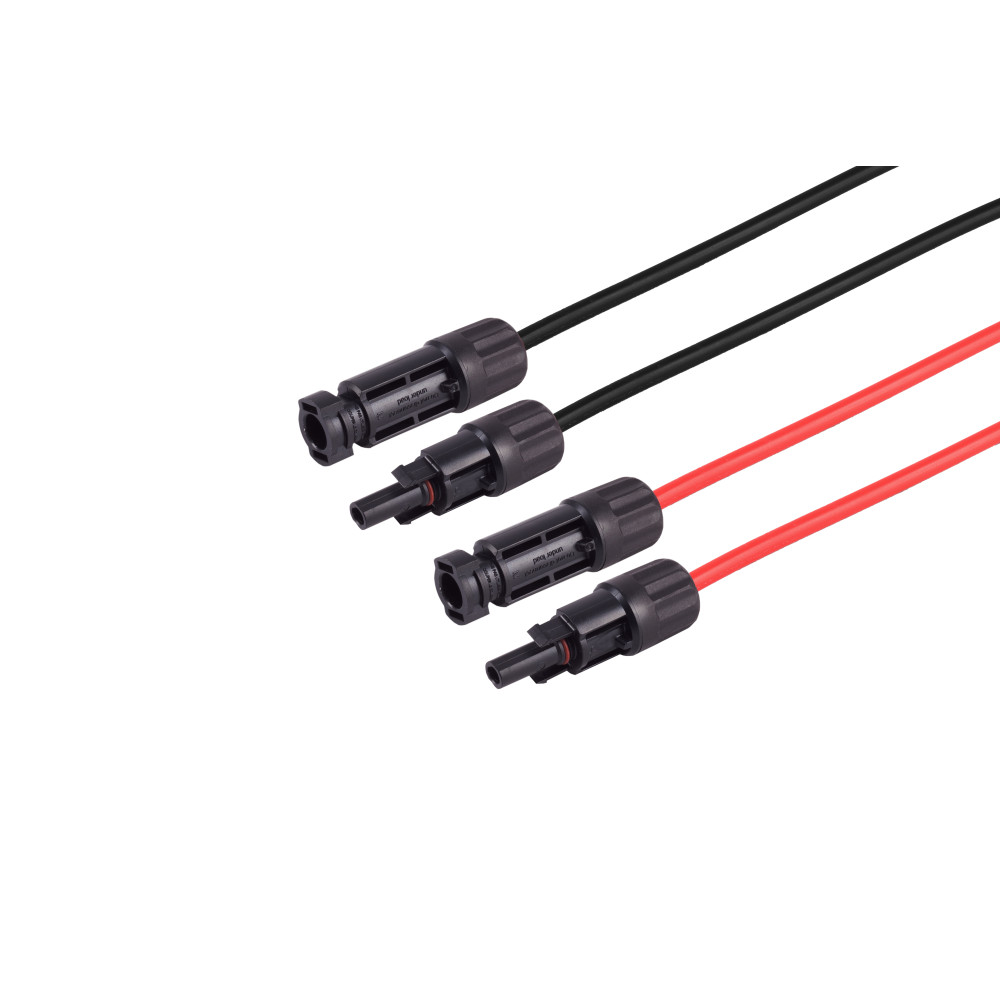

PV4 extension, 6mm², 2pcs set red/black, 25m

Solar extension cable set suitable for serial as well as parallel cabling from photovoltaic plants. A set based on two cables, the two cables are each assembled with plug to jack. The PV4, also known by the brand name MC4 (Multi Contact), are the standard connectors for photovoltaic systems. The extension cables are certified according to H1Z2Z2-K and IEC 62852 so that safety and quality can be guaranteed. Plug / Jack · Connections: PV4 plug to PV4 jack · Plug connection: Ø 4mm · Contact material: tin-plated copper · Type of contact: pin plug / jack, single contact · Contact manufacturing process: lathed · Mounting type: crimping · Contact system: NEC locking type · Insulation material: PPO · Locking system: Snap-in · Overvoltage category: CAT II · Pollution degree: 2 · Protection class: 2 · Degree of protection (plugged): IP68, 1m / 1h · Flame class: UL94 V-0 · Rated voltage: 1500 volts DC · Test voltage: 6 kV (50 Hz, 1 min.) · Contact resistance: = 0.25 mOhm · Rated current (IEC 62852 at 85 °C): 6.0mm² (10AWG) 40 A · Rated impulse voltage: 16 kV · Ambient temperature: -40 °C to +90 °C Cable · Number of conductors: 1 · Conductor cross-section: 6.0mm² · Conductor material: tinned copper · Wire type: stranded · Cable type: round cable · Number of insulators: 2 · Material insulator: XLPO e-beam cross-linked (halogen-free) · Color: black · Material insulator outer sheath: XLPO e-beam cross-linked (halogen-free) · Color: black, red · Cable diameter (approx.): 6.0 mm · Minimum bending radius (static): 4 x OD · Minimum bending radius (dynamic): 5 x OD · Rated voltage: AC U0/U = 1 kV, DC 1.5 kV (max. permitted U0 1.8 kV DC) · Voltage withstands: 6.5 kV AC · Ambient temperature: -40 °C to +90 °C, max temperature at conductor +120 °C · Storage temperature: maximum +45 °C · Conductor resistance at +20 °C: = 5.09 Ohm/km · Insulation resistance at +20 °C: = 1000 MOhm/km · Current carrying capacity at +60 °C: 70 amperes · Certification: H1Z2Z2-K (Cable), IEC 62852 (Plug / Jack) · Standards: EN 50618 & IEC 62930, VDE 0295 / IEC 60228 class 5, EN 60332-1-2 (flame retardant), IEC 60754-1 (halogen-free), EN 60811-403, EN 50396 8.1.3 (ozone resistant method A & B), EN 50289-4-17 (weathering/UV resistance) (Cable) IEC 62852:2014, IEC 62852:2014/AMD1:2020, EN 62852:2015/11:2020 (Plug / Jack) · Length: 25.0m Info: use only one manufacturer of connectors for your PV project. Package Contents: 1x PV4 extension cable, red 1x PV4 extension cable, black
