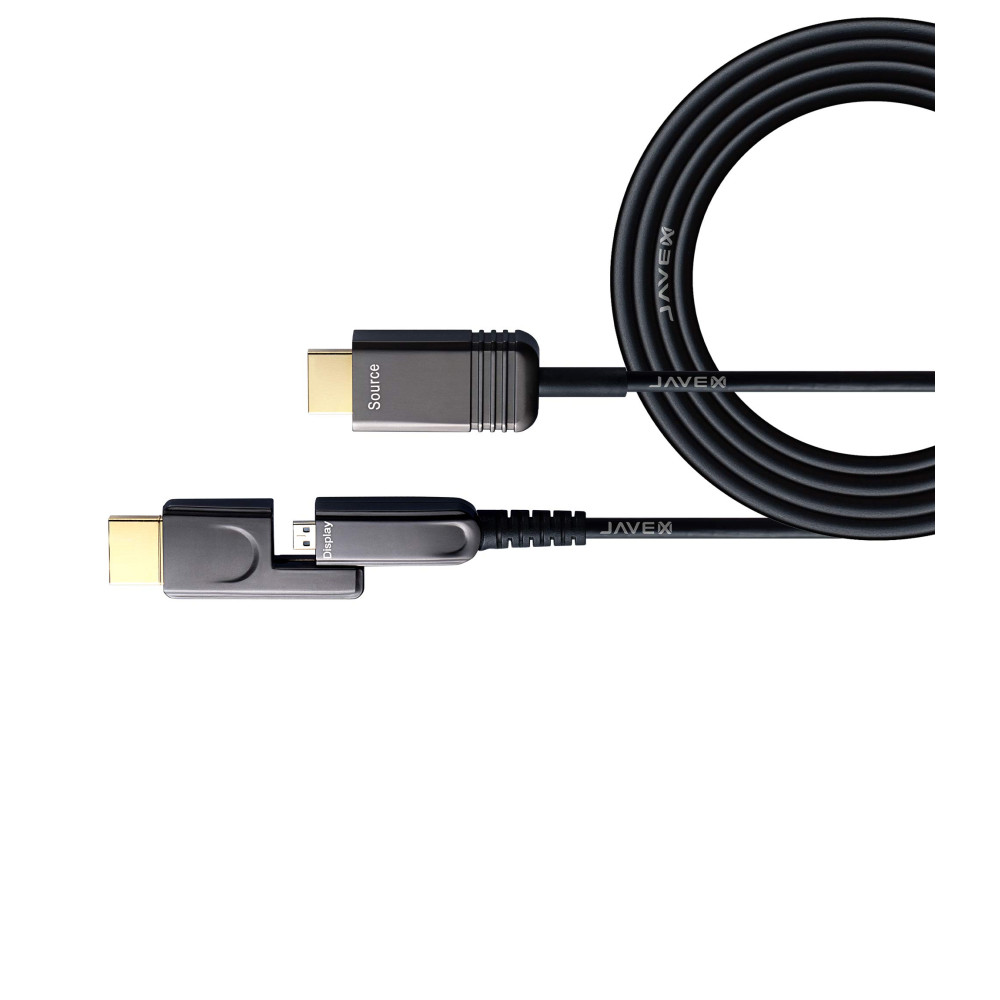

HDMI optical installation cable set, 10K, 10m

The active optical HDMI hybrid cable (AOC) transmits your multimedia signal even over long distances lossless. Ultra High Speed HDMI cables are installed in high-end systems. They support a bandwidth of up to 48 Gbps and a resolution of up to 10K. Because of the high bandwidth, higher color depths and refresh rates now can be realized. It is possible to transmit 8K video material in 4:4:4 color space at 12-bit color depth (uncompressed). Compressed (DSC 1.2), 10K can also be transmitted in 4:4:4 color space at 16-bit color depth. Higher frame rates and bandwidths are becoming increasingly important in 3D, VR applications and video games. With the HDMI cable you connect e.g. your set-top box with your TV, video projector or monitor. This HDMI cables support all important transmission standards. With in the set there is a pulling capsule, here you can insert the HDMI-D plug. An eyelet is attached to the cabsule to fixate your cable laying tool. Now the HDMI-D connector is protect and can be pulled through an ductwork. For ductworks with minimum 20mm inner diameter. Info: eARC is not supported with this cable, ARC is supported up to 30m. · Connections: HDMI-A plug to HDMI-D plug · Incl. Adapter HDMI-D jack to HDMI-A plug (with DC jack for 5V infeed), USB power cable (USB-A plug to DC plug), plastic pulling capsule · Resolution up to (with DSC): 10K (120Hz), 8K (120Hz), 5K (120Hz), 4K2K (240Hz), 1080p (3D) · Resolution up to (with out DSC): 10K (30Hz), 8K (60Hz), 5K (100Hz), 4K2K (120Hz), 1080p (3D) · Supports color sampling in 4:4:4, 4 2:2 and 4:2:0 formats · Supports: Dynamic HDR, HDR10, HLG, HDCP 2.2, HDCP 2.3, 4K3D (120Hz), Display Stream Compression 1.2, HEC, 21: 9 Cinema Picture Format, 1080p High Frame Rate (HFR) 3D, Game Mode VRR, ARC, CEC 2.0, HDMI 2.1 Multichannel Sound Systems · Max. Bandwidth: 48 Gbps · HDMI standard: Ultra High Speed with Ethernet · Backwards compatible: yes to all HDMI standards · Signal direction: unidirectional (one directional) · Sorce side: HDMI-A plug · Sink side: HDMI-D plug, adapter HDMI-D jack to HDMI-A plug · Plug: moulded, gold plated · Contact surface: gold plated · Plug housing: metal · Kink protection: yes · Wire material: copper / POF · Cable type: round cable · Material cable sheath: PVC · Cable sheath diameter (ca.): 4.5mm · Color: black · Length: 10.0m
