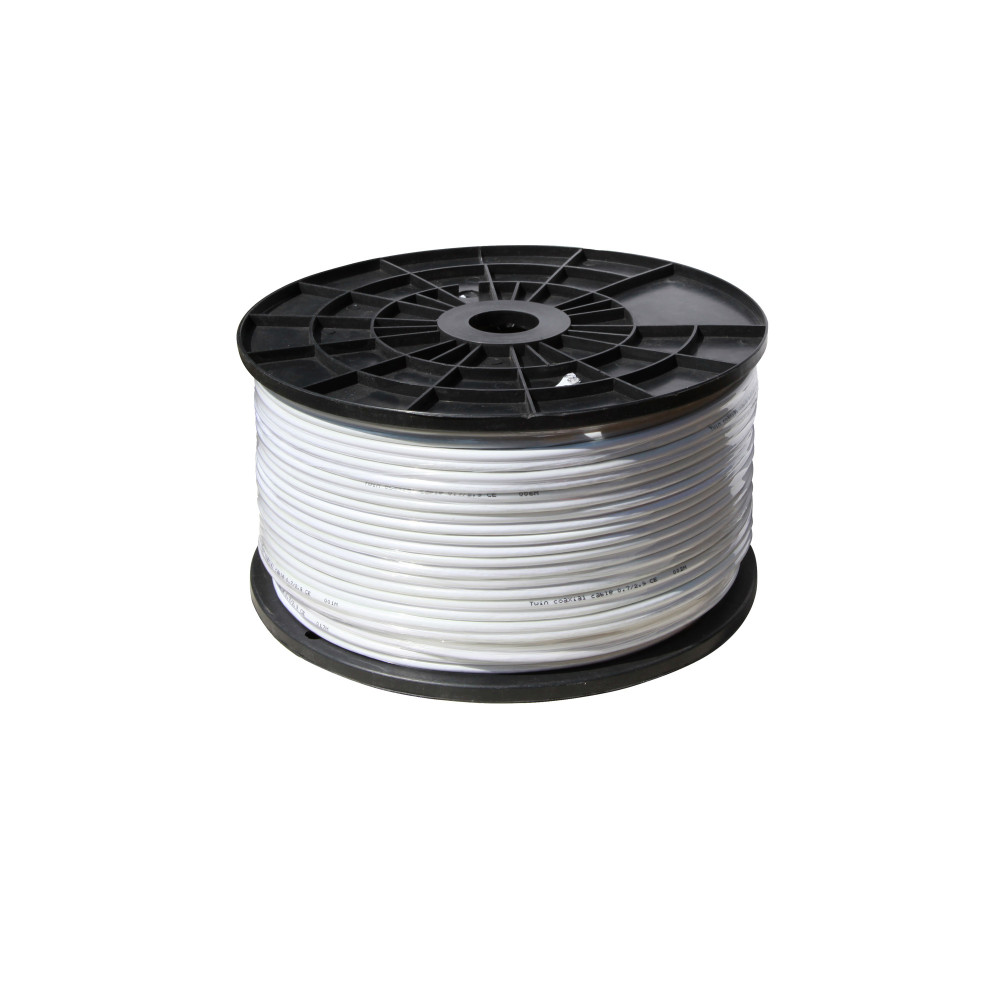

Coax cable triple shield 100m CCC 120dB

Coaxial cable smart TITANIUM, 120dB, 100m coil, triple shielded, COPPER coaxial cable for BK and SAT type 1,0 / 4,6 Digital, coaxial cable for BK and SAT Innenleiter / inner conductor Ø 1,0mm Material inner conductor / material conductor Kupfer/CU Dielectric / isolation Ø 4,6 mm Material dielectric / material isolation FOAM PE Structure / specification 1x aluminum foil-double laminated 128 x 0.10 mm aluminum 1x aluminum foil-double laminated outer jacket / jacket Ø 6,9 mm Material color PVC / weiß / white characteristic impedance 75 O shielding factor / screening factor 120dB Capacity approx. / Capacitance approx. 55pF/m Verkürzungsfaktor v/c / Velocity ratio v/c 0,82 Biegeradius / Bending radius 45mm
