Antenna Amplifier, dual, 20dB, IEC
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

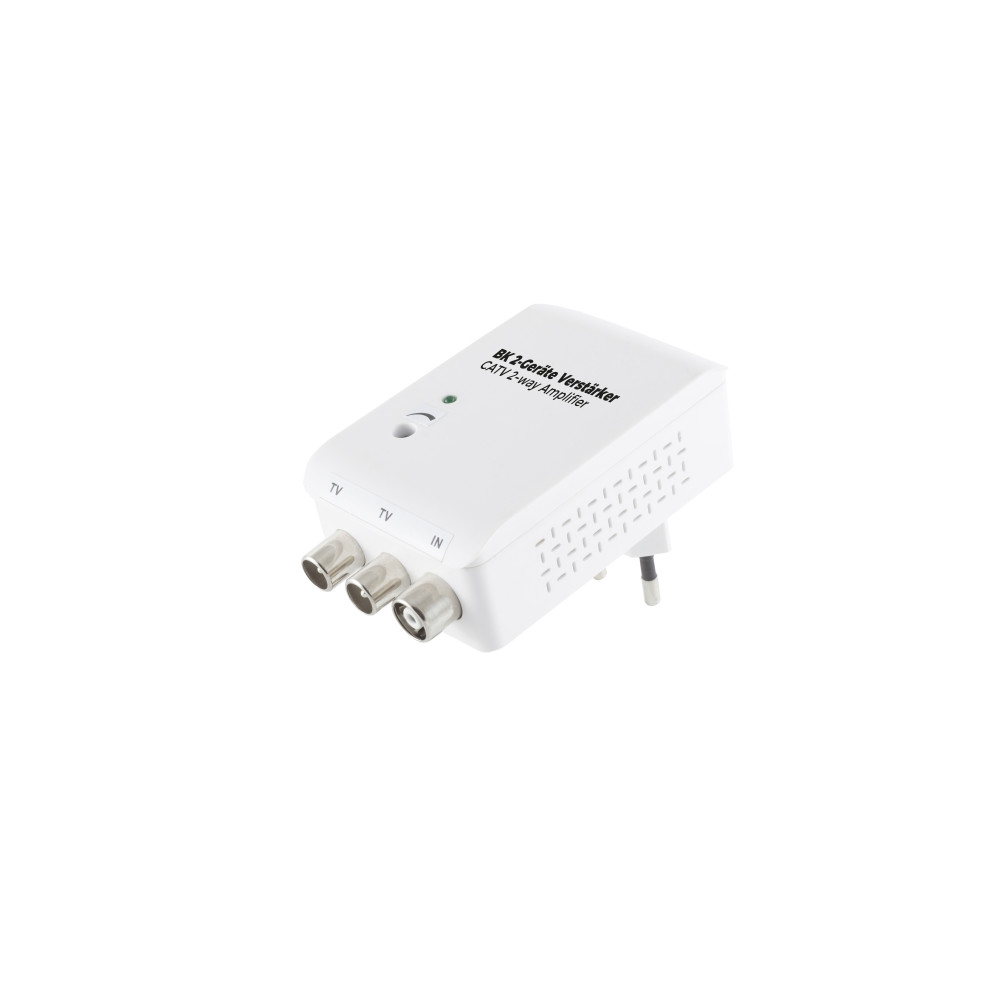

Indoor Antenna Amplifier, 2 x 20 dB The antenna amplifier can amplify existing DVB-C or DVB-T antenna signals and split them on up to two devices. · Connections input: IEC jack · Connections Output: 2 x IEC plugs · Impedance: 75 ohms · Power plug: europlug (Typ C, CEE 7/16) · Integrated power supply: 230 V~ / 50 Hz / 2.7 W · Protection class: II · Frequency range: 47 - 782 MHz · Amplification: 2 x 20 dB · Adjustable amplification: 5 dB to 20 dB · Noise figure: = 4 dB · Output level (max.): 98 dBµV · Input return loss: = 5 dB · Output return loss: = 8 dB · Product dimensions (L x W x H): 95 x 56 x 71 mm · Product weight: 112 g · Color white Package Contents: · Antenna amplifier · Antenna cable 1,5m (IEC plug to IEC jack) · User Manual
15-15002
