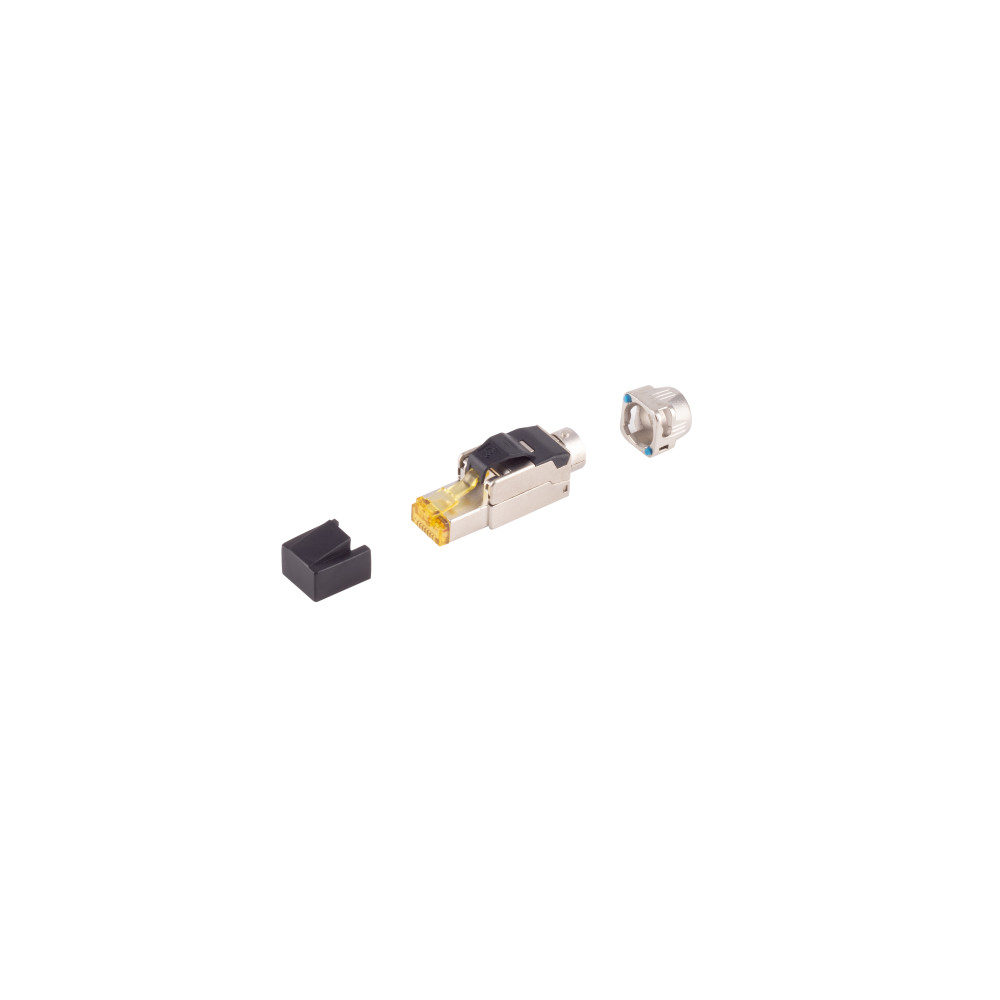

RJ-45 plug, toolless, Cat. 8.1, STP, bayonet

The field assembly plug is used for connection of network cables, you can use different cable types use. · Connections: Insulation-displacement connector (IDC) to RJ-45 plug · Fit for solid wires 1/22 AWG to 1/24 AWG · Fit for stranded wires 7/22 AWG to 7/24 AWG · For cable diameters: 7.0 to 8.5mm · Specification: Cat. 8.1 (Class I) · According to FLUKE DSX-8000 CAT 8 CHANNEL TEST 2000 MHz · Shielding class: STP · Compatible with: 10GBASE-T, 25GBASE-T, 40GBASE-T · Housing material: metal, zinc die-casting nickel plated · Material IDC terminal: PC (UL94 V-2), copper tin plated · Material contacts: phospor bronze 100u nickel plated, 50u gold plated · Tool-less installation · Features: bayonet quick release, cable manager (PC, UL94 V-2) with T568A/B color code, min. 750 mating cycles (RJ-45), min. 20 mating cycles (IDC), · Standards: IEC 60603-7-81, ISO/IEC TR 11801-99001 Class I, ANSI/TIA 568 C.2-1, ISO/IEC 11801 · Operating temperature: -10 to +60 °C · Color: silver Package Contents: · 1x RJ-45 plug · 1x Cable manager (PC, UL94 V-2) · 1x Metal boot straight, bajonet quick release · 1x Copper foil · 1x Instruction manual
