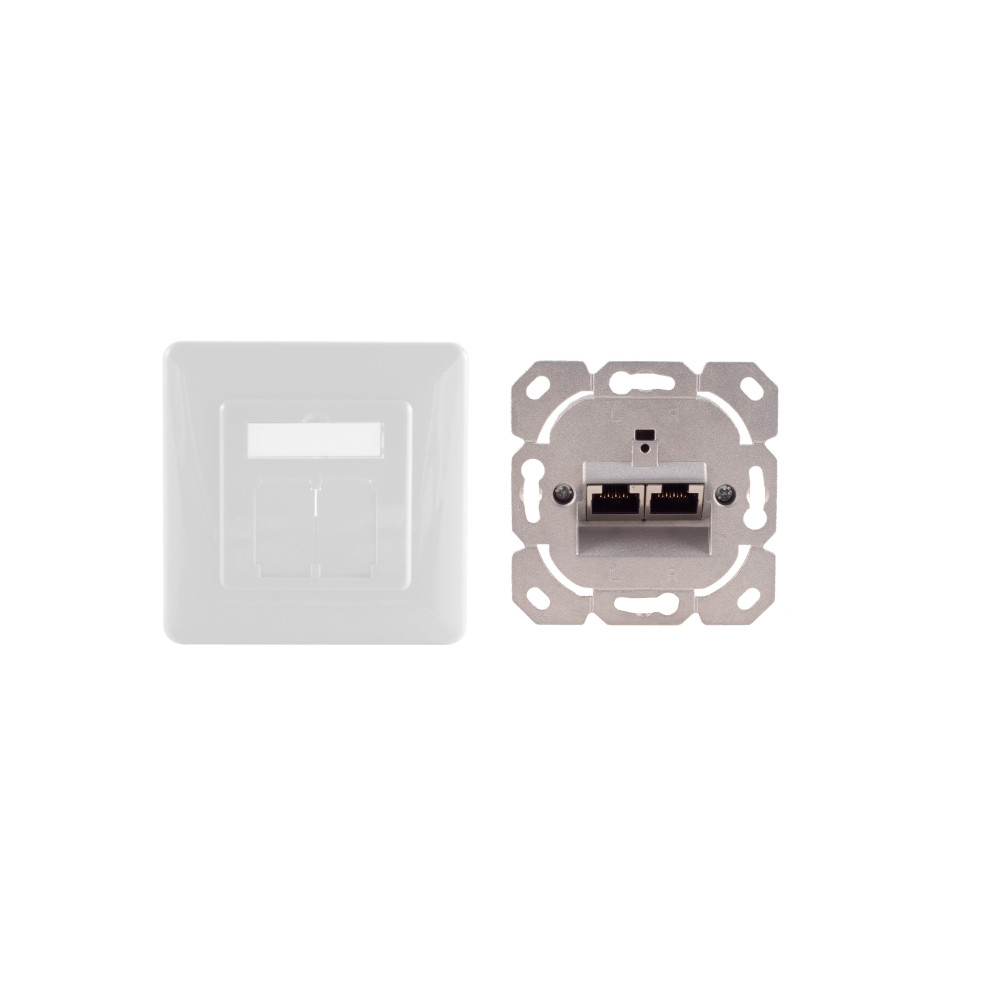

RJ-45 network socket, 2-port, Cat. 6A, 8-ways

Dual RJ-45 wall socket Cat. 6A up to 500 MHz. For in-wall installation. Removable edges for space-saving installation. Complete shielding of the RJ-45 jacks and the LSA bars. Designable, compatible with popular switch ranges. 8-way cable routing on the back of the network socket. Thanks to the octagon plate, the network cables can find their way into the network socket at up to 8 angles. Choose the right angle, for the cable entry, before you punch down the cable to the IDC bars. · Connections: 2 x 8-pole Insulation-displacement connector (IDC) to 2 x RJ-45 jacks · Mounting: flush mount, with frame and central unit · Cable managment: horizontal, vertical, diagonal · Color-coded LSA bars according to EIA/TIA-568A/B · Metal buckle for locking and strain relief the cables, is fastened with 2 screw on backplate · Specification: Cat. 6A (Class EA) · Bandwidth up to: 500 MHz · Transmission rate up to: 10 Gbps · Shielding class: STP · Distance between holes edges (ca.): 57mm · Distance between holes sides (ca.): 60mm · Dimensions ca. (LxWxH): 70 x 70 x 40mm · Housing material: metal, zinc die-cast · Color: grey, silver Package Contents: · 1x Network socket · 1x Frame with central unit (inscribable label) · 1x Instruction manual
