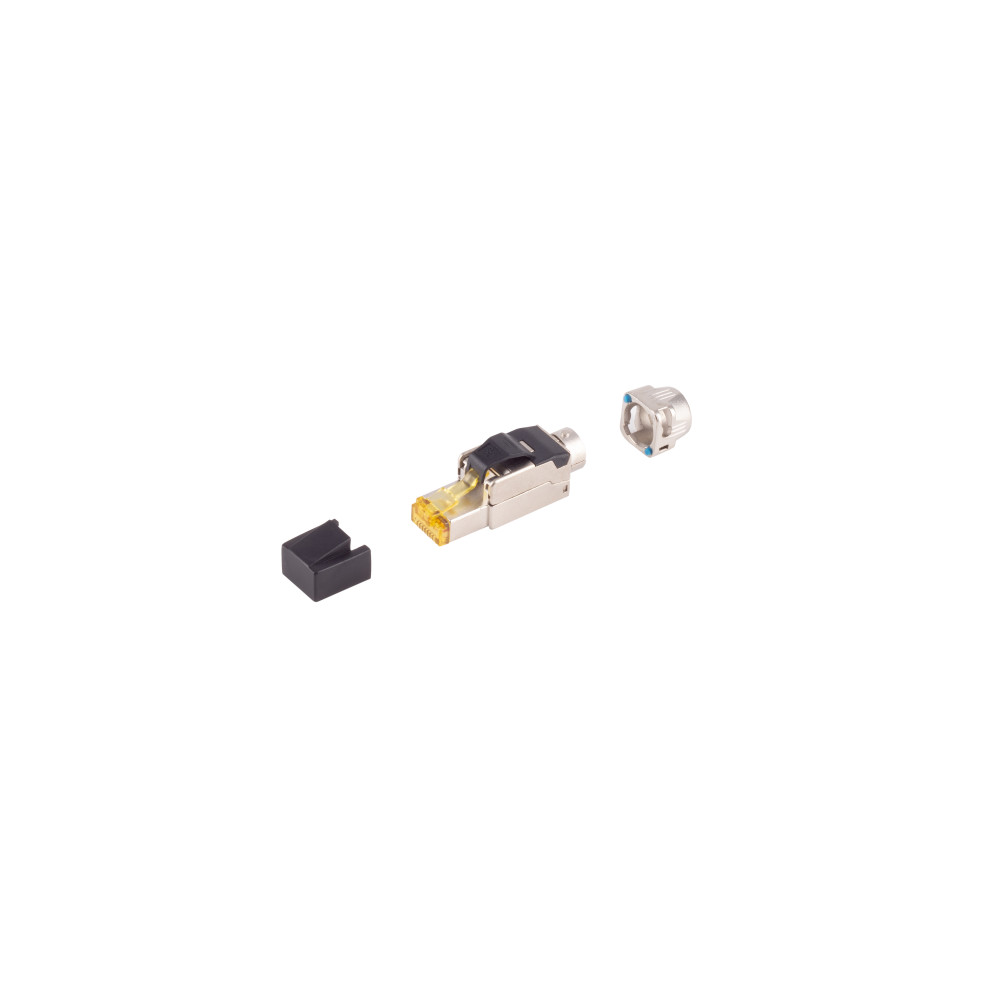

RJ-45 plug, toolless, Cat. 6A, STP, bayonet

The field assembly plug is used for connection of network cables, you can use different cable types use. · Connections: Insulation-displacement connector (IDC) to RJ-45 plug · Fit for solid wires 1/23 AWG to 1/26 AWG · Fit for stranded wires 7/23 AWG to 7/26 AWG · For cable diameters: 6.0 to 7.5mm · Specification: Cat. 6A (Class EA) · Shielding class: STP · Compatible with: 100Base-TX, 1000Base-T, 10GBASE-T · Housing material: metal, zinc die-casting nickel plated · Material IDC terminal: PC (UL94 V-2), copper tin plated · Material contacts: phospor bronze 100u nickel plated, 50u gold plated · Tool-less installation · Features: bayonet quick release, cable manager (PC, UL94 V-2) with T568A/B color code, min. 750 mating cycles (RJ-45), min. 20 mating cycles (IDC), · Standards: IEC 60603-7-51, ISO/IEC 11801, ANSI/TIA 568 C.2 · Operating temperature: -10 to +60 °C · Color: silver Package Contents: · 1x RJ-45 plug · 1x Cable manager (PC, UL94 V-2) · 1x Metal boot straight, bajonet quick release · 1x Copper foil · 1x Instruction manual
