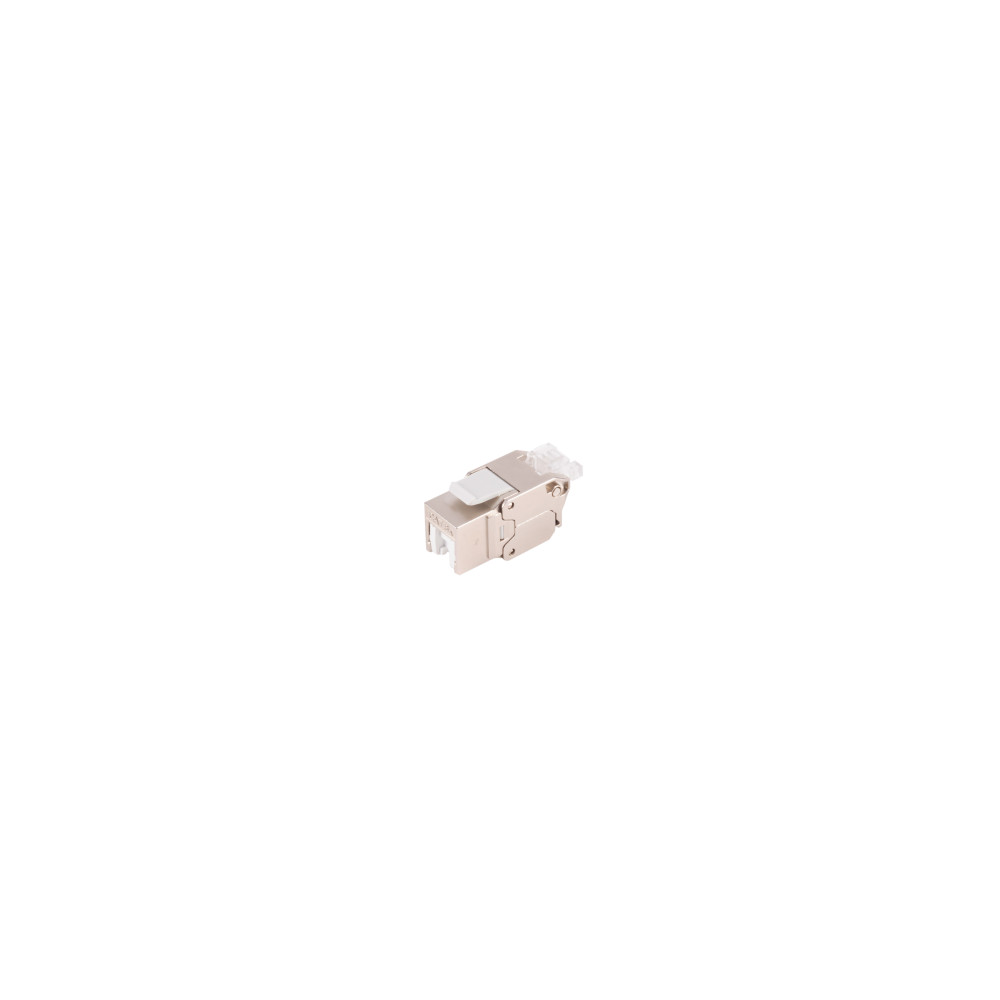

RJ-45 keystone, Cat. 6A, STP, ClampFix, toolless

A Keystone module can be connected to a network cable, you can use different cable types. The dimensions of Keystone modules all follow a standard so they can be mounted easily on suitable holders. · Connections: Insulation-displacement connector (IDC) to RJ-45 jack · Fit for solid wires 1/23 AWG to 1/26 AWG · Fit for stranded wires 7/23 AWG to 7/26 AWG · For cable diameters: 5.0 to 8.5mm · Dimensions (LxWxH): 42.5 x 16.8 x 20.2mm · Specification: Cat. 6A (Class EA) · Shielding class: STP · Compatible with: 100Base-TX, 1000Base-T, 10GBASE-T · Housing material: metal, zinc die-casting nickel plated · Material IDC terminal: PC (UL94 V-2), phospor bronze tin plated · Material contacts: phospor bronze nickel plated, 50u gold plated · Tool-less installation · Features: reusable cable clamp (PC, UL94 V-2), dust shutter (ABS+PC, UL94 V-0) cable manager (PC, UL94 V-2) with T568A/B color code, min. 750 mating cycles (RJ-45), min. 20 mating cycles (IDC), · Standards: IEC 60603-7-1, ANSI/TIA 568.2-D · Operating temperature: -10 to +60 °C · Color: silver Package Contents: · 1x Keystone module RJ-45 · 1x Cable manager (PC, UL94 V-2) · 1x Instruction manual
