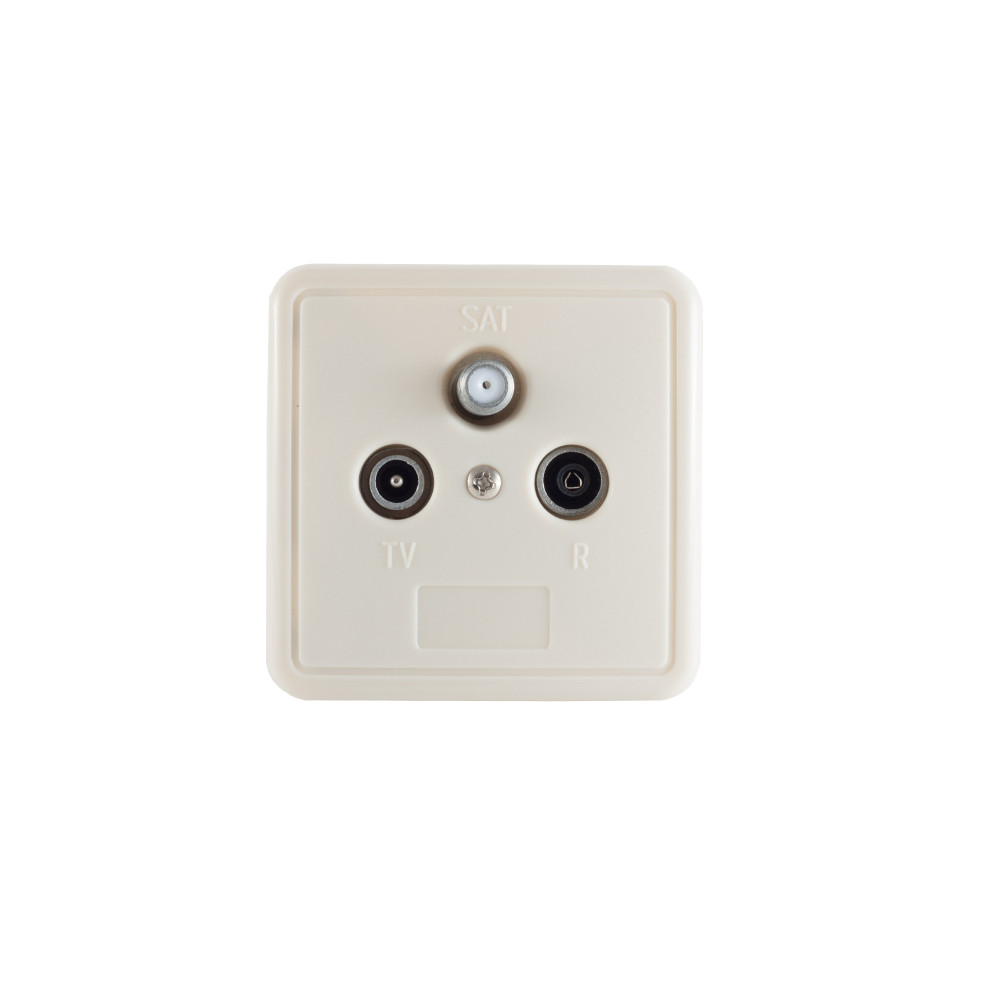

Antenna socket, clamp function, TV/Radio/SAT, 1dB

Suitable for on wall mounting or flush mounting. Easy plug in from coaxial cable without need screws (clamp function). · Type: terminal socket · Feature: clamp function, incl. frame and cover in white color RAL 9003 · Suitable for digital- and back channel: yes · DC-pass: yes · Housing: zinc die-casting · Color: grey / silver Trunk line · Frequency range: 5 to 2400MHz · Insertion loss (IN / OUT): - · Isolation internal: - · Suitable for inner conductor: 0.6 to 0.8mm · Suitable for outer diameter: 4 to 6mm IEC plug (TV) · Frequency range: 5 to 862MHz · Insertion loss (IN): 2,5 +- 1,5dB · Frequency range: 1000 to 2150MHz to 2400MHz · Insertion loss (IN): = 18dB IEC jack (Radio) · Frequency range: 5 to 110MHz · Insertion loss (IN): 6,5 +- 1dB F-type jack (SAT) · Frequency range: 950 to 2150MHz · Insertion loss (IN): 2,5 +- 1dB · Frequency range: 2150 to 2400MHz · Insertion loss (IN): 2,5 +- 2dB
